Sheeting and Cutting Machine

We have gained expertise in delivering an extensive gamut of Sheeting and Cutting Machines. State of art used in the mechanism is as per product texture size and shape. Due to their excellent performance and user-friendliness, all our machines are widely used for sheeting and cutting Chocolates, Malai, Khawa, Chhiki, Jelly etc.

Model No. : DT - 80SC

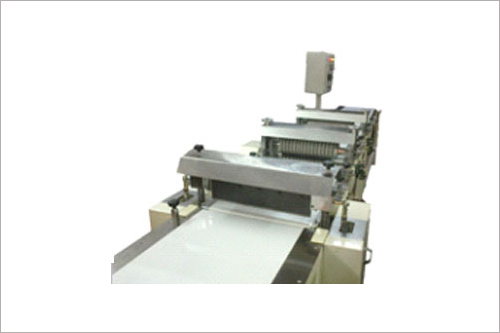

Sheeting and Cutting Machine

The company has implemented best technology to persuade highly efficient sheeting and cutting machines for food industry. The machines are latest and accomplish all the essential requirement for sheeting and cutting chocolate bar, chhiki, malai bar, khawa bar, jelly etc. This Mechanism is developed by the company for the end of sheeting and cutting line used for mass production capacity 1MT per shift.

Mode	Auto
Motor	1x3 HP
Power Input	3 Phase 415V AC, 50 Hz

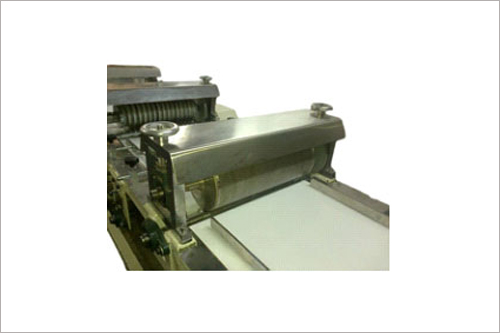

System	Extruder, Gang Cutter, Gagging Roller, Gelatin Cutter
Speed	1 meter/ min
Machine Size	5000x1000x1000 (LXWXH)
Machine Weight	1500 KG

Features

•  End of Sheeting and Cutting line for various products
•  Flexibility in changing cut length of the product
•  Easy transportation of product by food grade belt
•  Improved design for simple operation and maintenance
•  No technical men are required to keep the machine in trouble-free operation
•  All parts contacted the product are made of stainless steel with teflon coating

Application: Chocolate bar, Malai bar, Khawa bar, Chhiki, Jelly, Fruit bar, Nutritious bar etc…
